Fiber Optical Cable Distribution Box

  • Fiber Optical Cable Distribution Box
  • Fiber Optical Cable Distribution Box
  • Fiber Optical Cable Distribution Box
  • Fiber Optical Cable Distribution Box

Fiber Optical Cable Distribution Box

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 100 Piece/Pieces
    Delivery Time: 10 Days
    Packaging: Cartons
    Productivity: 1000/week
    Brand: HTLL
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 1000/Week
    Certificate: ISO9001:2008
    Port: ShangHai,ShenZhen,ChengDu

Basic Info

Model No.: GFL

Product Description

Description:

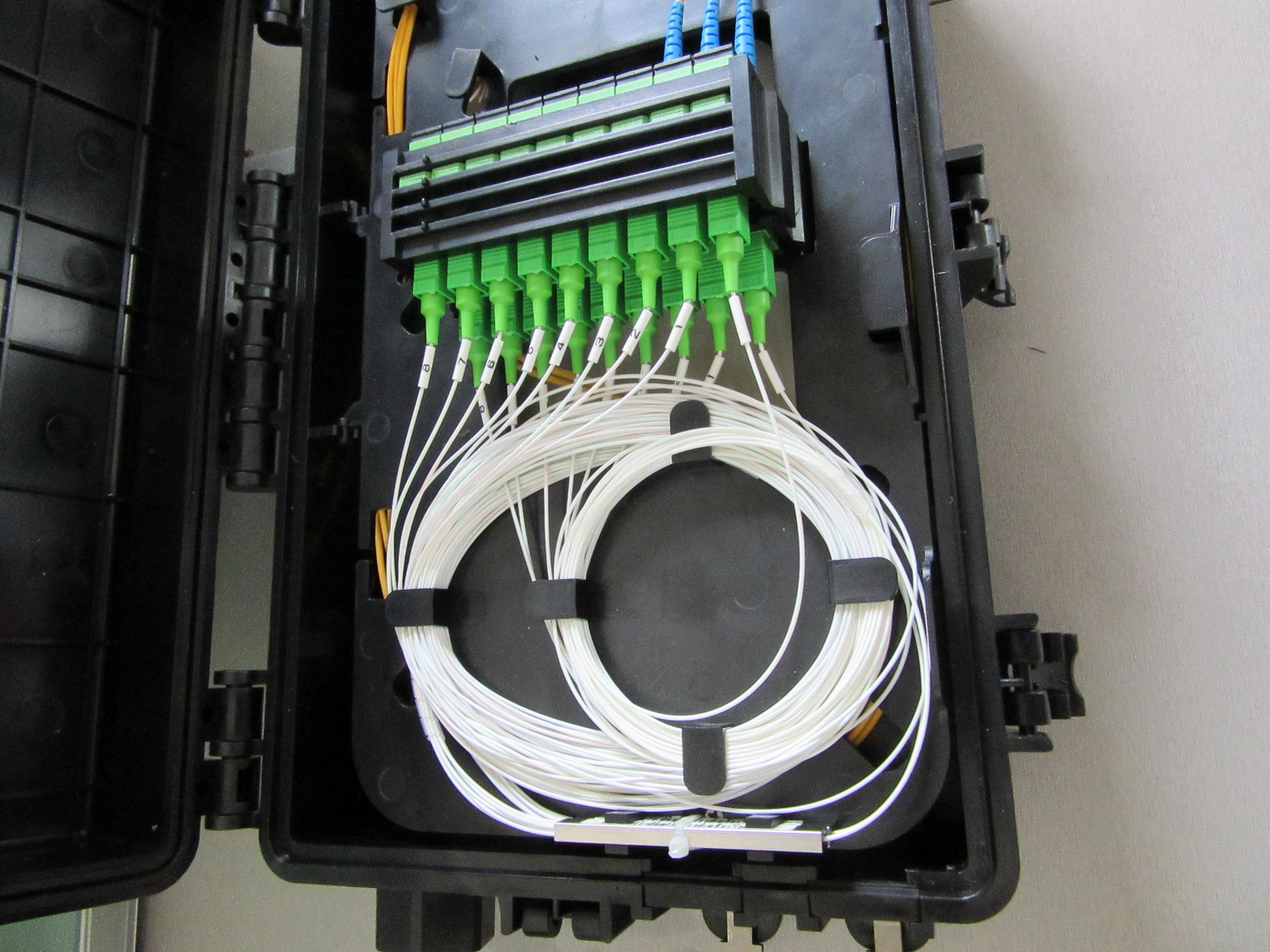

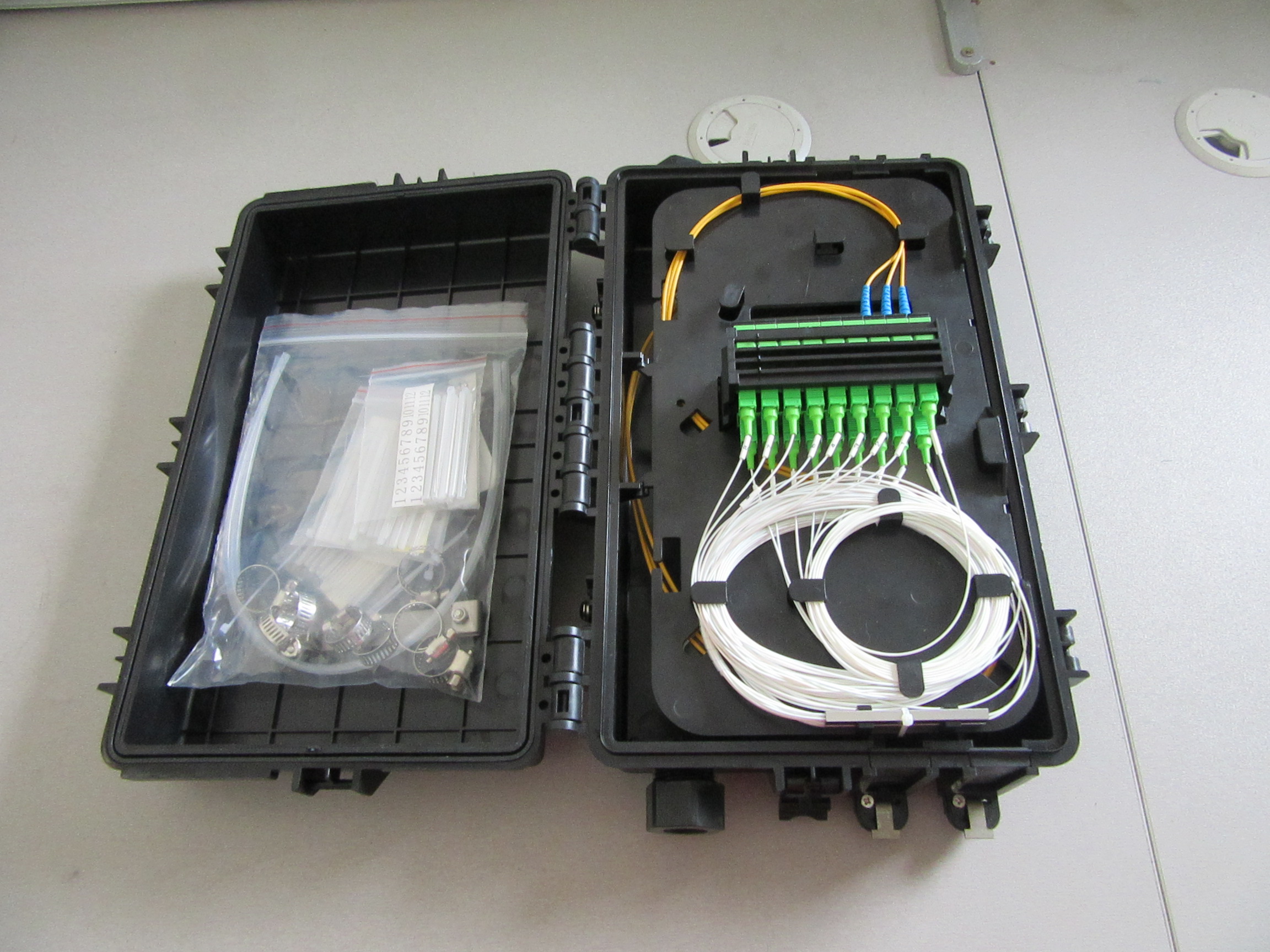

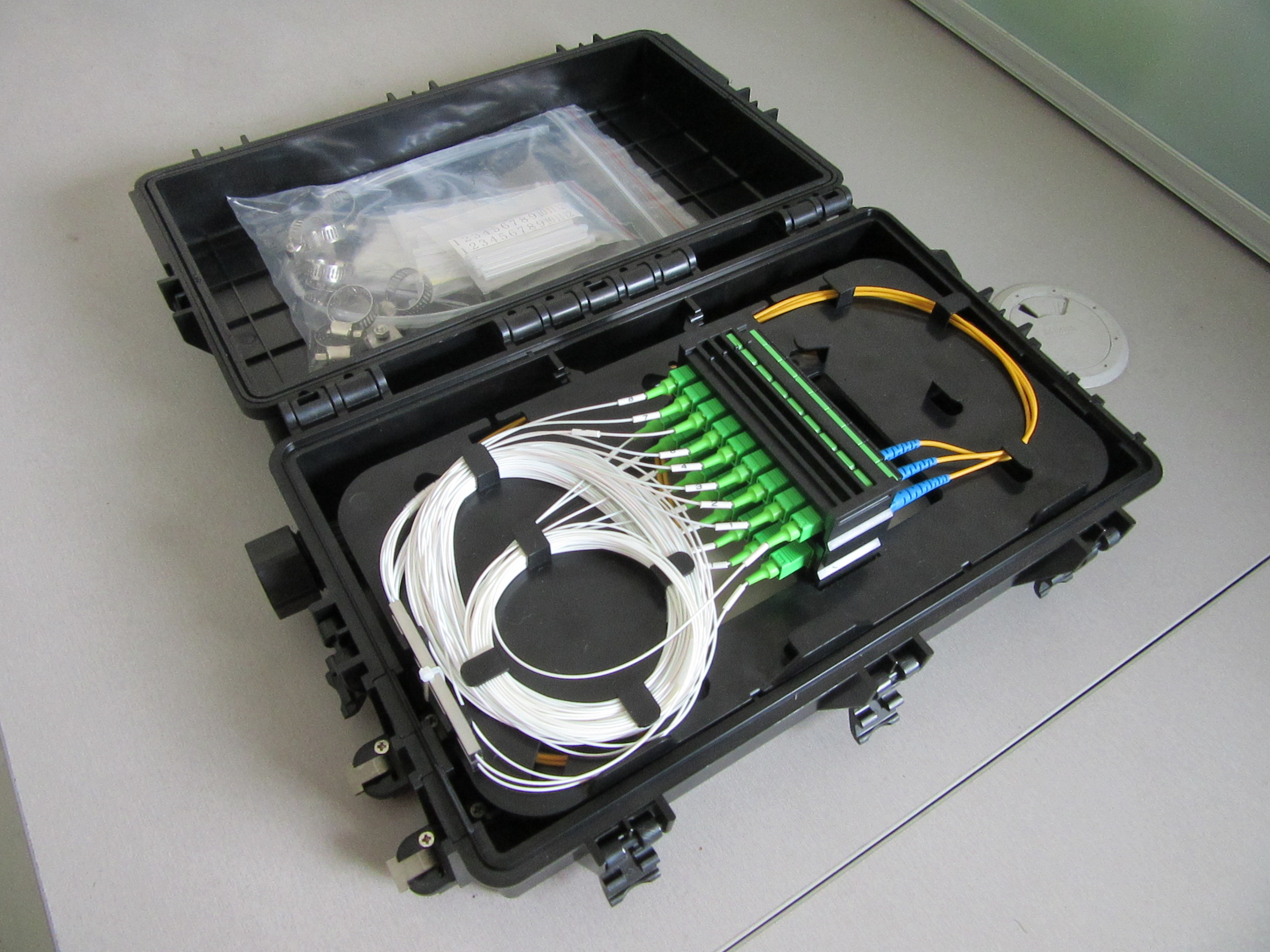

GFT Optical Distribution Box(ODB) is high-density 2-in-2-out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 etc.splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16 3mm cables.


Installation Procedures:

1. Main Cable Preparation (Figure 1)

1.1 Based on the diameter of the main optic fiber cable, choose corresponding cable seals and put the cable through two hose camps.

2. Cable Connection Endings Processing

1.1 Remove the sheath of the optic fiber cable, the removed optic fiber cable length base on local installation tradition.

1.2 Remove the all layers of the cable, except the loose buffer tube and leave proper length for strength member.

1.3 Clear the oil stain and filler material.

3. Fixing of Main Fibers (Figure 2)

3.1 Place the main cable seals into the grooves on the end of the box, use the hose camp to fix the outer sheath of fiber cable, and pin down the strengthen member by a metal plate placed inside, and insert the loose buffer tube into the fiber melting protection tube

4. The Melting Connection between Main Cables and Pigtails (Figure 3)

4.1 Ring cut and remove the loose buffer fiber tube at the access entry of fiber tray, expose the bare fibers, and secure the fibers with Nylon tie-wrap.

4.2 Secure the pigtails with tie-wrap at another side of access entry, and strip

4.3 Absolutely remove the dust & oil stain on the fiber tray and then According to

prescribed operation procedures & requirements to do melting, testing, melting protection,fixing the fused joint and marking. And put extra fibers inside the fiber tray regularly.

4.4 After finishing the fusion on the fiber tray, insert the pigtails to the front side of flipping board through side holes

5 Connection Between Pigtails and Splitters (Figure 4)

5.1 At the right side of the flipping board, the pigtails coil and then insert into the splitter.(the connector port at the bottom

6.Fixing of Drop Cables

6.1 The drop cable seal has 8 holes, which allows 8 drop cables correspondingly. According to the number of the accessed fibers, the corresponding holes should be reserved. For example, if enter 4 drop cables, 4 holes should be cut out by the scissor.

6.2 Put drop cables through the joint rings and seals, pin down the cable with cover plate. (figure 6, figure 7)

6.3 Insert the drop cable seals in the bottom holes of the box, fasten the plastic screws.(figure 8)

7. The Melting Connection Between Pigtails and Drop Cables (Figure 9, Figure 10)

7.1 Ring cut and remove the loose buffer fiber tube at the access entry of fiber tray, expose the bare fibers, and secure the fibers with Nylon tie-wrap.

7.2 Secure the pigtails with tie-wrap at another side of access entry, and strip

7.3 Absolutely remove the dust & oil stain on the fiber tray and then According to

prescribed operation procedures & requirements to do melting, testing, melting protection,fixing the fused joint and marking. And put extra fibers inside the fiber tray regularly.

7.4 After finishing the fusion on the fiber tray, insert the pigtails to the front side of flipping board through side holes. If the coil of pigtails goes anti clockwise, the pigtails needs to be drew into the back side of flipping board with opposite direction, then insert the pigtails to the front through side holes.

8.Connection Between Pigtails and Splitters (Figure 11)

8.1 At the right side of the flipping board, the pigtails coil and then insert into the splitter.

9.Aerial Installation

9.1 Secure the aerial buckles on the cabinet with M6x10 Stainless bolts.

9.2 Hang the ODB on steel wire with two buckles.

Storage

The ODB should be put under good ventilation condition and on the frames, which are

20mm away from the ground and wall of warehouse; temperature range: -25 to 40 degree;relative humidity should not be more than 85% (30 Celsius degree); the acid & alkali figures and the content of other harmful gases should meet environment protection requirement.
